Gather occupancy and environmental data to power productivity and save costs, efficiently

Privacy-first sensors are the foundation of R-Zero’s workplace intelligence platform.

See how it worksBuy now

A powerful sensor portfolio to optimize your building.

Configurable

Multisensor platform to configure the right solution to suit your needs.

Easy installation

Deploy at 1/10th the cost of hard-wired competitors with battery-powered sensors that enable fast access to data and insights for your team.

Secure

Get real-time, accurate data on space use and air quality, while preserving privacy with advanced on-device AI technology.

Unified

One networking layer and one software interface across occupancy, air, disinfection, and energy.



Customized solutions for your unique space.

Three sensors, endless possibilities.

WorkPoint

Sense human presence at a desk or in a room, ideal for where you need to determine if a space is in use.

sensors-small

Features

  • PIR presence detection
  • Optional UV, temperature, and humidity detection
  • Up to 300 sqft coverage from a ceiling or furniture mount
  • Low-power bluetooth connection delivers 10-year battery life
  • Dimensions: 1.85" x 1.85"

Use cases

  • Determine utilization of all types of spaces in your buildings, rooms, desks, phone booths, and more.
  • Measure utilization of single-person resources, like desks and phone booths, for future real estate and furniture decisions.
  • Open up room and space availability by integrating real-time occupancy status to space-reservation systems.

Entry/Exit Counter

An entry/exit people counting device using vision based sensing and on-board AI

R-Zero’s Entry/Exit Counter is a Bluetooth low energy-enabled device for counting occupants using an RGB camera and an on-board light weight deep learning AI model in order to anonymously count people within its FOV.

This wallet-sized device uses an ultra-low power circuit and confidential components, affording it a 6-month battery life in entry/exit mode while also measuring for temperature and humidity. This product requires the use of R-Zero’s firmware and its data requires a network-enabled and authenticated R-Zero Hub for collection in R-Zero’s secure cloud environment.

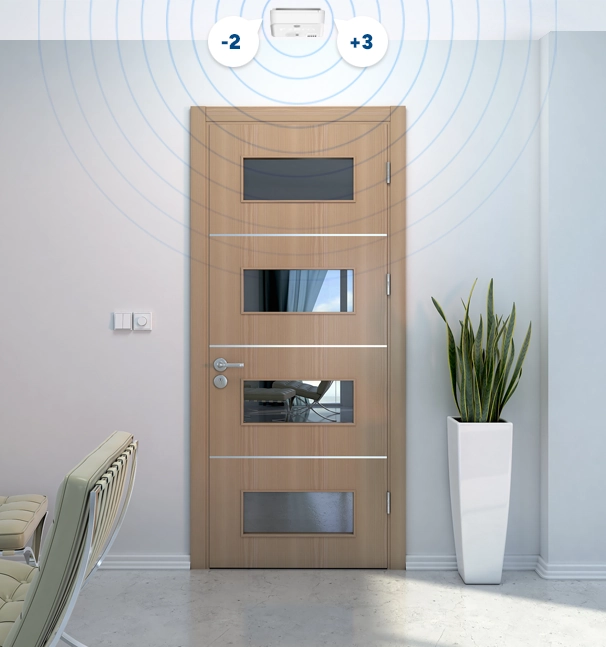

entry-exit-above-door

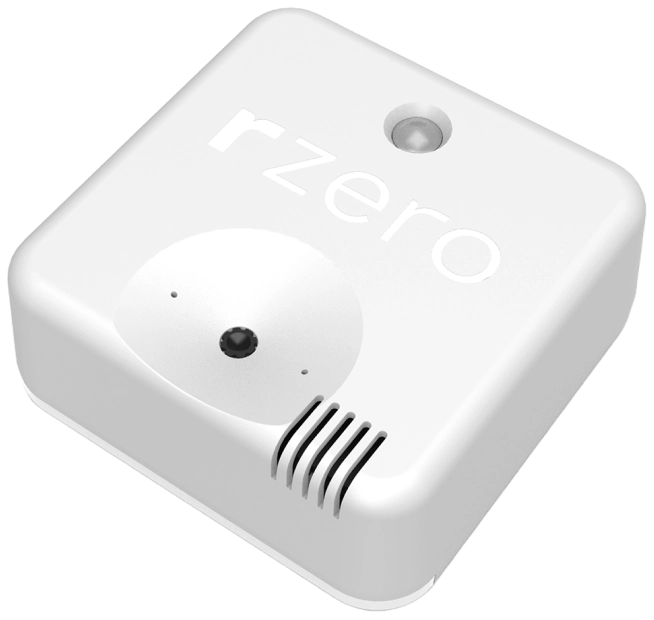

entry-exit-counter

Entry/Exit Counter Specifications

  • Detection Coverage:
    TBA, est. 200-400 SF (Coverage based on install height)
  • Recommended Install:
    Ceiling, 12.5’, doorway
  • Transmission Frequency:
    2+ Min. Count check-in, Occupancy check-in on Movement
  • Sensor Occupancy Accuracy:
    90%+
  • Entry/Exit Count Accuracy:
    90%+
  • Sensor Resolution:
    640 x 480
  • Temperature Accuracy:
    ±0.5C @ –30°C-60°C
  • Humidity Accuracy:
    ±2 @20-80%
  • Requirements to obtain accurate data:
    • Sensor is placed in accordance to install instructions
    • Room temperature: 15.5°C-26.6°C
    • Field of View is free of obstructions
  • Button Presses:
    1 press = alert, long press = reset
  • Firmware:
    Entry/exit people counting
  • Form factor:
    87 x 87 x 32 mm
  • Type:
    4 piece snap fit
  • Material:
    ABS
  • Color:
    White Matte
  • Mounting:
    VHB Tape, Mechanical Frame Attachment, Magnetic Attachment
  • Form factor:
    85 x 85mm
  • Power Source:
    5, AA Battery or USB-C
  • On/off switch:
    On device
  • Sensor type:
    RGB camera, PIR
  • Radio:
    BLE 4.2, Broadcast, No Pairing
  • Firmware Updates:
    OTA
  • Estimated battery life:
    6-12 months
  • Certification:
    Pending

Air Quality Monitor

Advanced air and environmental quality monitor with enterprise security.

iaq-monitor

Features

  • RESET accredited: temperature, humidity, CO2, PM2.5, total VOC
  • Advanced measurements: PM 1.0 and 10, formaldehyde
  • Environmental monitoring: luminosity, noise, and pressure up to 1,000 sqft
  • Power: Wall or PoE
  • Connectivity: Bluetooth to hub

Use cases

  • Add comfort metrics to booking systems so employees can find spaces that meet their needs for light, noise, and temperature.
  • Measure air quality to optimize space for productivity and mitigate chemical exposure risk after build-outs and before occupancy.
  • Ensure dynamic HVAC controls never put comfort and airflow requirements at risk.

R-Zero sensors integrate with top workplace apps.

R-Zero’s APIs deliver data on demand for analysis or streaming to apps that enhance the workplace environment.

logos-integrations

REST API

Receive processed occupancy and device health data for analysis purposes in your business intelligence application.

Stream API

Stream sub-second occupancy event data to your workplace experience, reservation, and BMS/BAS applications.

Workplace innovation starts here.

Unlock data across every space type to future-proof workplace optimization.
